BUSBAR BUSBAR INSULATOR SM 76

BUSBAR BUSBAR INSULATOR SM 76

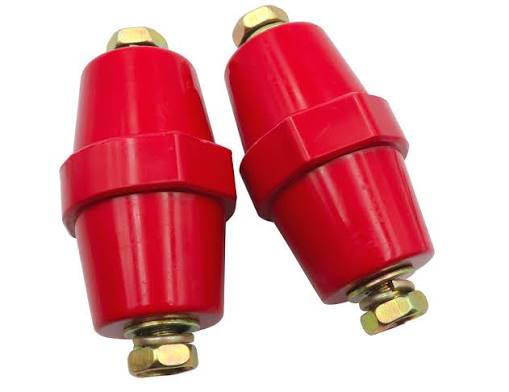

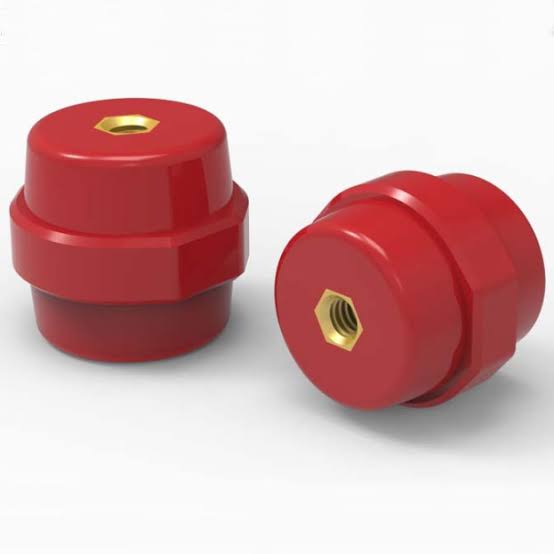

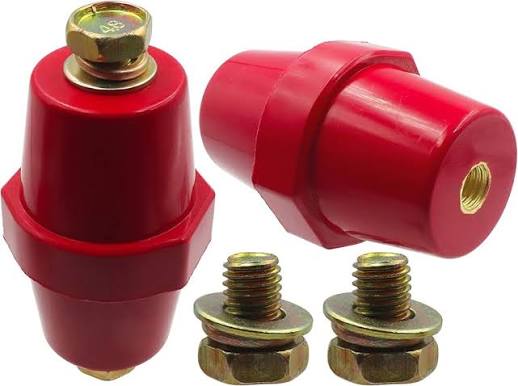

Busbar Insulator SM76 is an insulating support used to securely mount and isolate copper or aluminium busbars inside electrical panels and switchgear. It provides both mechanical support and electrical insulation, helping maintain safe spacing between live conductors and the panel enclosure. Typical SM76 models are about 76 mm high with M10 threaded inserts, and are used in low-voltage distribution systems.

Common uses

Supports busbars in distribution boards and switchboards.

Electrically isolates busbars from the metal panel or enclosure.

Maintains proper clearance between phases to reduce the risk of short circuits.

Used in MCC panels, control panels, generator panels, ATS panels, and power distribution systems.

Helps improve the safety, stability, and reliability of electrical installations.
