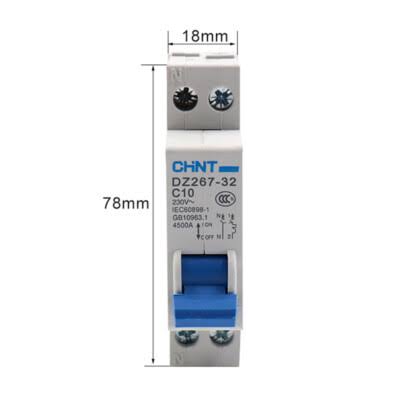

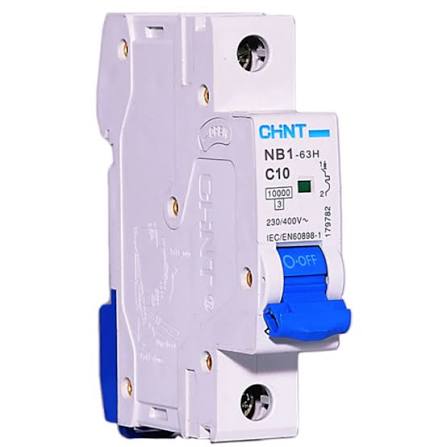

CHINT MCB AC 1P 10A

CHINT MCB AC 1P 10A

A CHINT MCB AC 1 Pole 10A (Miniature Circuit Breaker) is used to protect a single-phase electrical circuit against overload and short-circuit faults. It automatically disconnects the power when the current exceeds the safe limit, helping to protect wiring and connected equipment.

Specifications

Brand: CHINT

Type: AC Miniature Circuit Breaker (MCB)

Poles: 1 Pole (1P)

Current Rating: 10A

Rated Voltage: 230/400V AC

Frequency: 50/60 Hz

Mounting: 35 mm DIN rail

Standard: IEC 60898-1


Common uses

Lighting circuits

LED lighting systems

Security lighting

Small control circuits

Fans and low-power appliances

Residential and commercial distribution boards


Key benefits

Protects electrical cables from overheating due to overload.

Trips automatically during short circuits to prevent equipment damage.

Can be reset after a fault, unlike a fuse which must be replaced.

Provides safe isolation of the circuit during maintenance.


Note: A 10A MCB is commonly used with 1.5 mm² copper cable for lighting circuits.
